Vector Libraries let you organize dynamic vector options to use on multiple templates at the same time. Vector Libraries can be applied to:

  • Dynamic Vectors

Once you assign a library to a Customily element, every change you make on the library will be reflected in that element.
For example, let's say you want to offer 5 new vector options for your printed products. If you edit the library that has all the vectors used for those prints and add 5 new EPS to it, all the dynamic vectors that use this library will be updated across all templates!

To create a vector library

1. Open the libraries menu as shown here

2. Select Vector Libraries Tab

3. Click Add Library to create a new library

4. Name your library and click create to start choosing the vectors for the library

5. Once the library is created you will see it on your library list. Click Edit to see the library and start adding vectors to it

To add vector options to your library

1. Click Edit to see the library and add, delete or modify vector options in it

2. To add a new vector option click Add Vector

3. Choose the vector option you are going to add. If this is the first vector you are adding to the library, then it will be option 1

If you want to assign a vector to a different option, you can either type the option number or click the arrows next to it to change options.

4. Click Upload Eps(s) to select the vector you want to add to that option.

Pro tip!!
You can upload multiple vectors in consecutive positions by selecting them all together from the upload dialog. The vectors will be uploaded in the same order as the files appear on your folder.
5. Once the EPS (or multiple EPS!) is uploaded, click Create Vector(s)

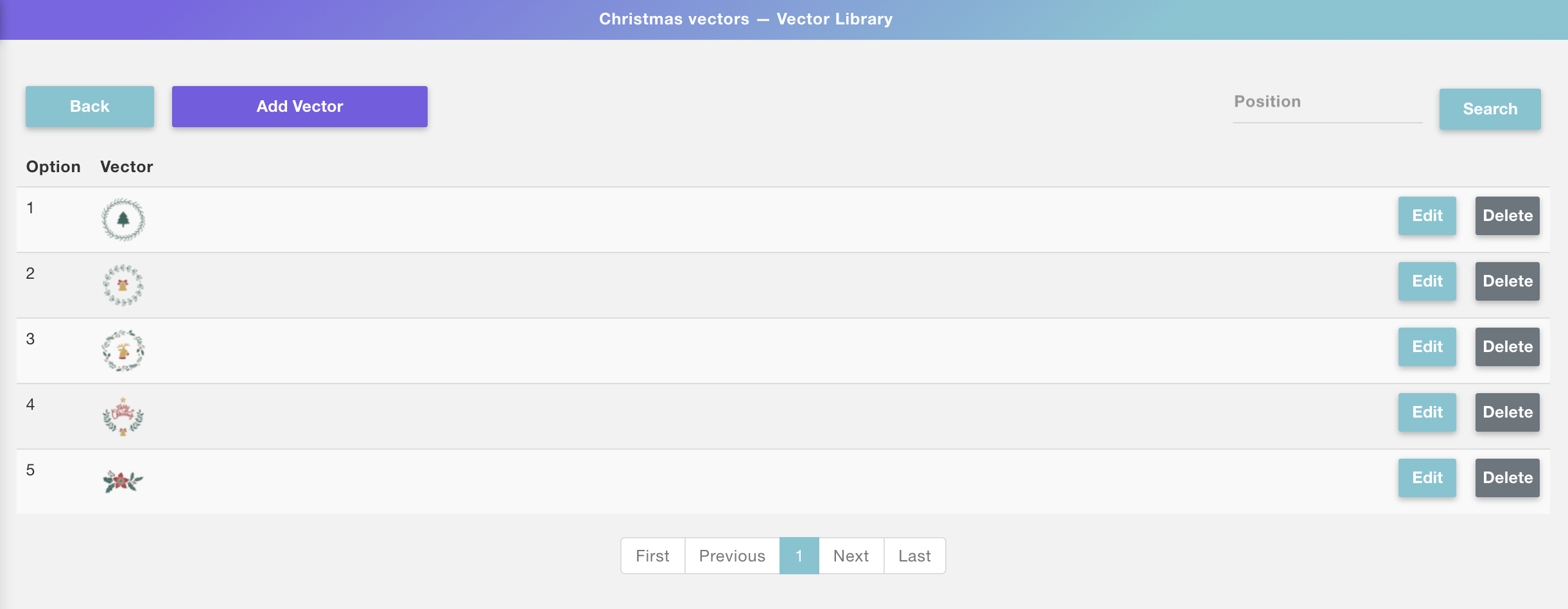

5. You'll now see the vector was saved into option number 1. Repeat this as many times as vectors you want to add to the library. At the end of the process, you'll have something like this:

Every extra vector you add will be automatically added to the following option. For example, if you already have 3 options set, the next vector you add will by default be added in vector option 4, unless you change that manually of course.

To edit a vector library

1. Select any library you want to edit from your libraries list and click the Edit button

2. Once inside the library, you can either add new vectors, edit existing vectors, and delete existing vectors.

To clone a vector library

1. Select any library you want to clone from your libraries list and click the Clone button

2. The cloned library will appear at the end of the list, with the text "cloned" added to its name. To edit that library's name just click the name to make it active, type any new name you want and hit enter.
